RAW800LP BRASS EDITION
High Torque High Speed

FULLY PROGRAMMABLE

4 POLE - Brushless Low Pro Servo
SUBMARINE WATERPROOF: 7 Point Seals
Magnetic Angle Sensor
Voltage 4.8V - 8.4V
REEFS LINK required for Programming (Optional)

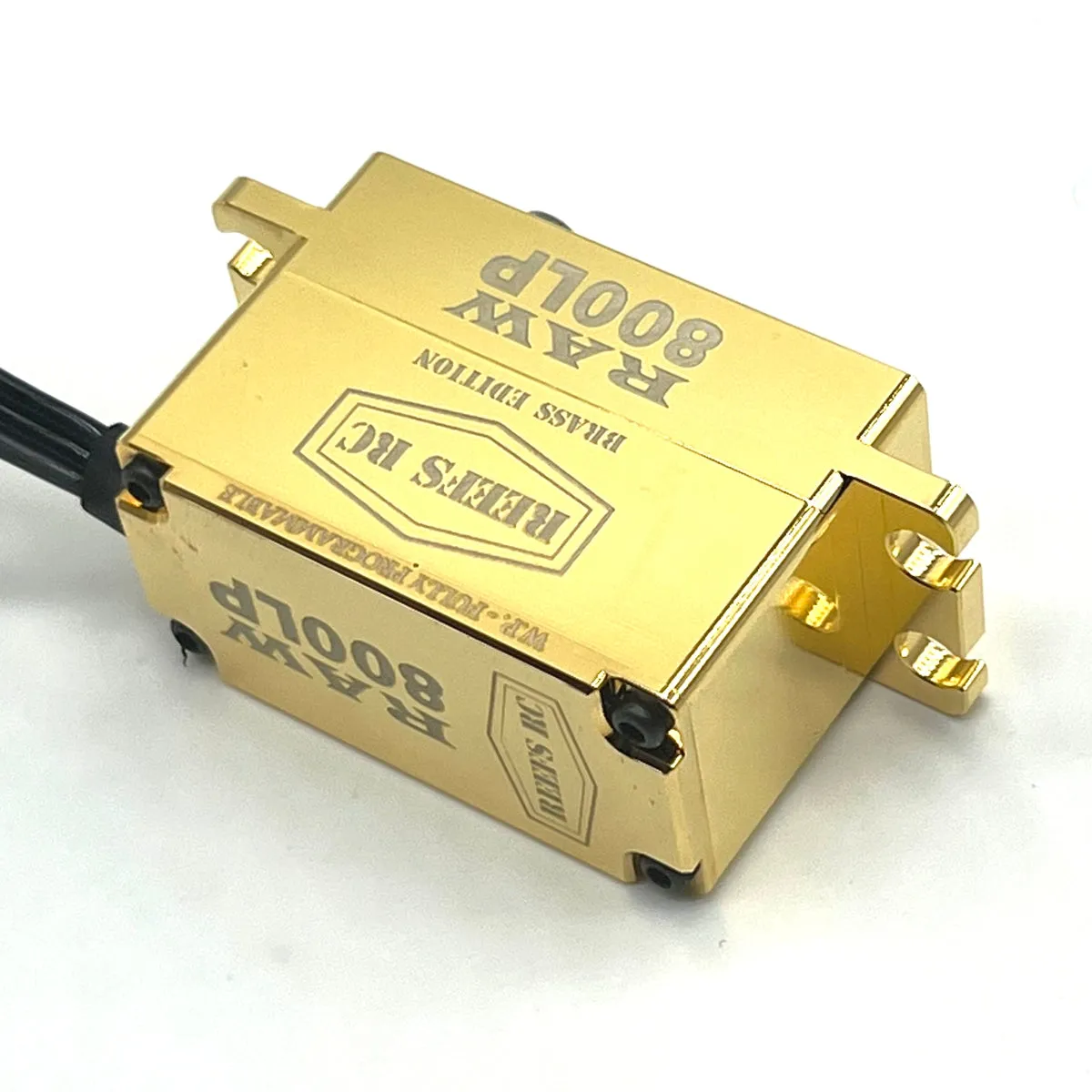

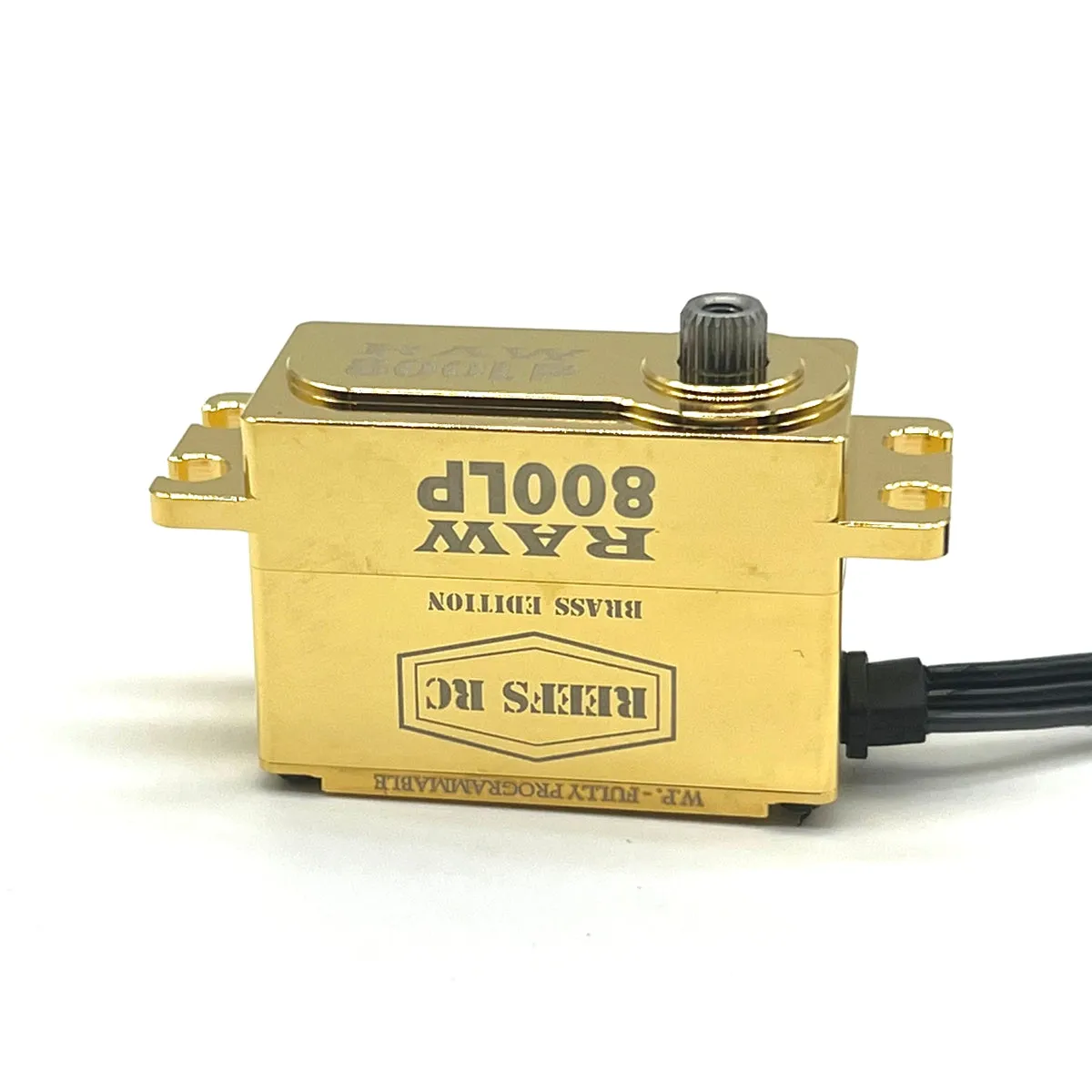

Internal: Steel Gears / CNC Brass Casing with ULTRA Finish
Bearing Type: 2 Ball Bearings

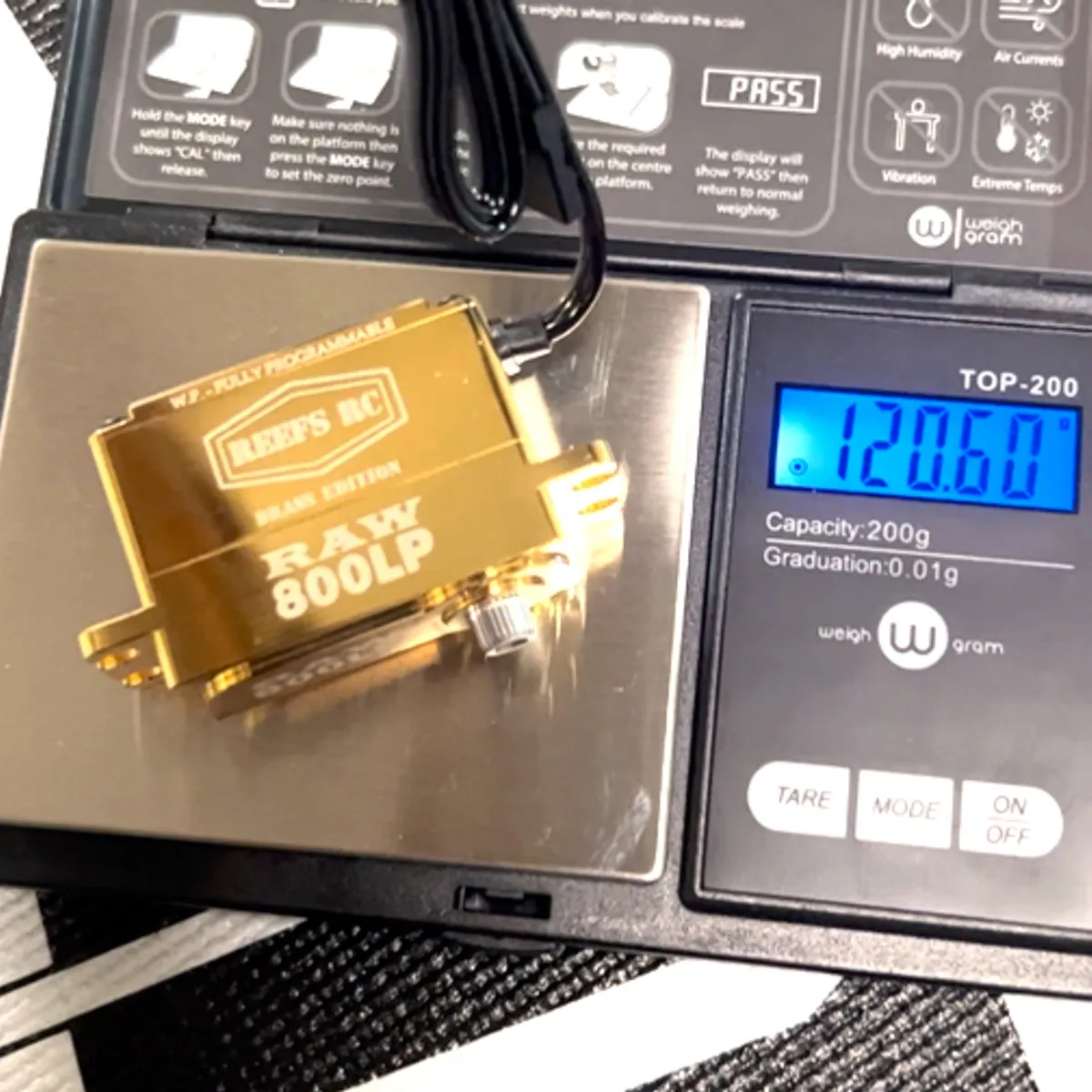

Weight: 4.23oz / 120.1G

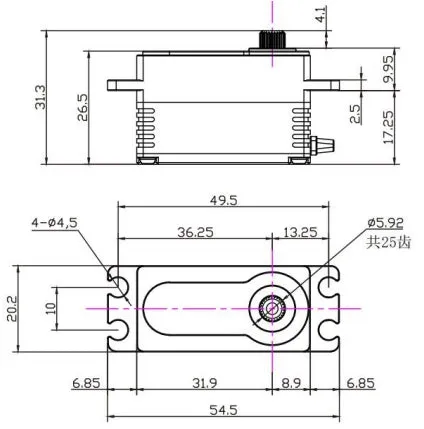

Dimension LWH: 1.6 x .79 x 1.16 / 40.8x20.2x29.5mm
Torque: 635oz (45kg)@ 6v/ 715oz (51kg)@7.4v/ 800oz (57kg)@8.4v
Speed: .12sec @6v/.10sec @7.4v/.09sec @8.4v
Spline: 25T / Dead Band Width: 2¦Ìs
BEC Not Req. Recommended for max performance

Unload Current: 500mA @ 6.0V, 540mA @ 7.4V, 580mA @ 8.4V

Load Current: 6000mA @ 6.0V, 6800mA @ 7.4V, 7500mA @ 8.4V

Item# REEFS160
