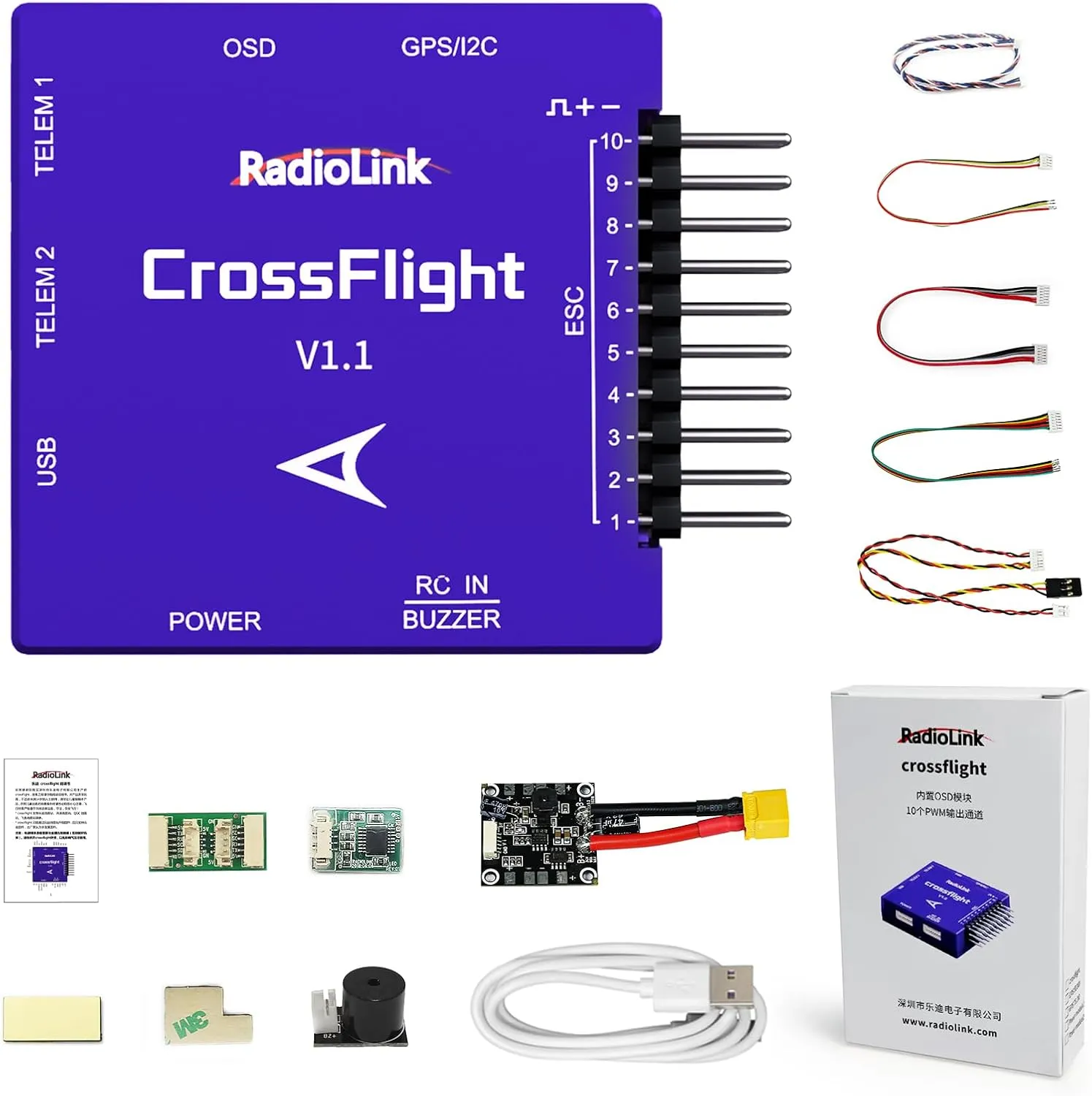

- NEW LAYOUT FROM PIXHAWK--same setting as PIXHAWK, but with 10 PWM output, more stable, can achieve gripper function, and set up to 2617 waypoints for multi-copters, and 2623 waypoints for airplanes, cars, and boats.
- MINI SIZE -- Only 1.56"*1.56"*0.51", suitable for mini racing drones, fixed wing, helicopters, multirotor and RC cars, etc. CrossFlight can be applied for agriculture, education,and so on.
- STABILIZATION -- The shell to reduce interference of airflow during flying, air pressure vent to ensure the accuracy of barometer measurement, and built-in barometer sensor to make altitude hold stabilization. Radiolink CrossFlight flight controller design by digital filter algorithm for damped vibration, the drone still have a good performance.
- OSD MODULE INTEGRATED -- CrossFlight can graphically display OSD information without the need for an external OSD module, such as flight mode, distance, GPS stars, longitude and latitude, vertical speed, magnetic deviation, current time, battery voltage, current, wind speed, return route, exact route, vibration status, direction, etc.
- EASIER SETUP -- Do not need complicated settings for beginner and professor players, set parameters by Radiolink Mission Planner, ArduPilot Mission Planner, and QGC Mission Planner. （The CrossFlight only can upgrade the firmware by Radiolink Mission Planner, and only can upgrade the firmware from Radiolink.）
- VIBRATION DAMPING BY SOFTWARE --CrossFlight can effectively filter out high-frequency vibrations, ensure the accuracy of sensor data at all times, achieve better Altitude Hold effect, and make the flight more stable. Breaking the tradition, all the planes with fixed wings, drones(including micro racing drones such as 210, 220, 250), and even helicopters do not need to add a mounting frame.
- POWER MODULE WITH WIDE VOLTAGE INPUT--The power module that comes with the flight controller with a wide voltage input range of 2-12S (7.4-50.4V), a maximum detection current of 90A (single ESC maximum detection current is 22.5A), a BEC output voltage of 5.3±0.2V, and a BEC output current of 2A.
- COST-EFFECTIVE SOLUTION--Flight controller CrossFlight, Radiolink M8N mini GPS TS100, 8 channels remote control system T8FB/T8S, ultrasonic sensor SU04/SUI04, almost all the parts of RC drone you need we can offer. Super adaptability of cost-effective solutions in various application fields such as cutting-edge UAV solutions, UAV education, agriculture, flight formation, educational companies, security and rescue, smart epidemic prevention, public safety, and cinematography solutions.
