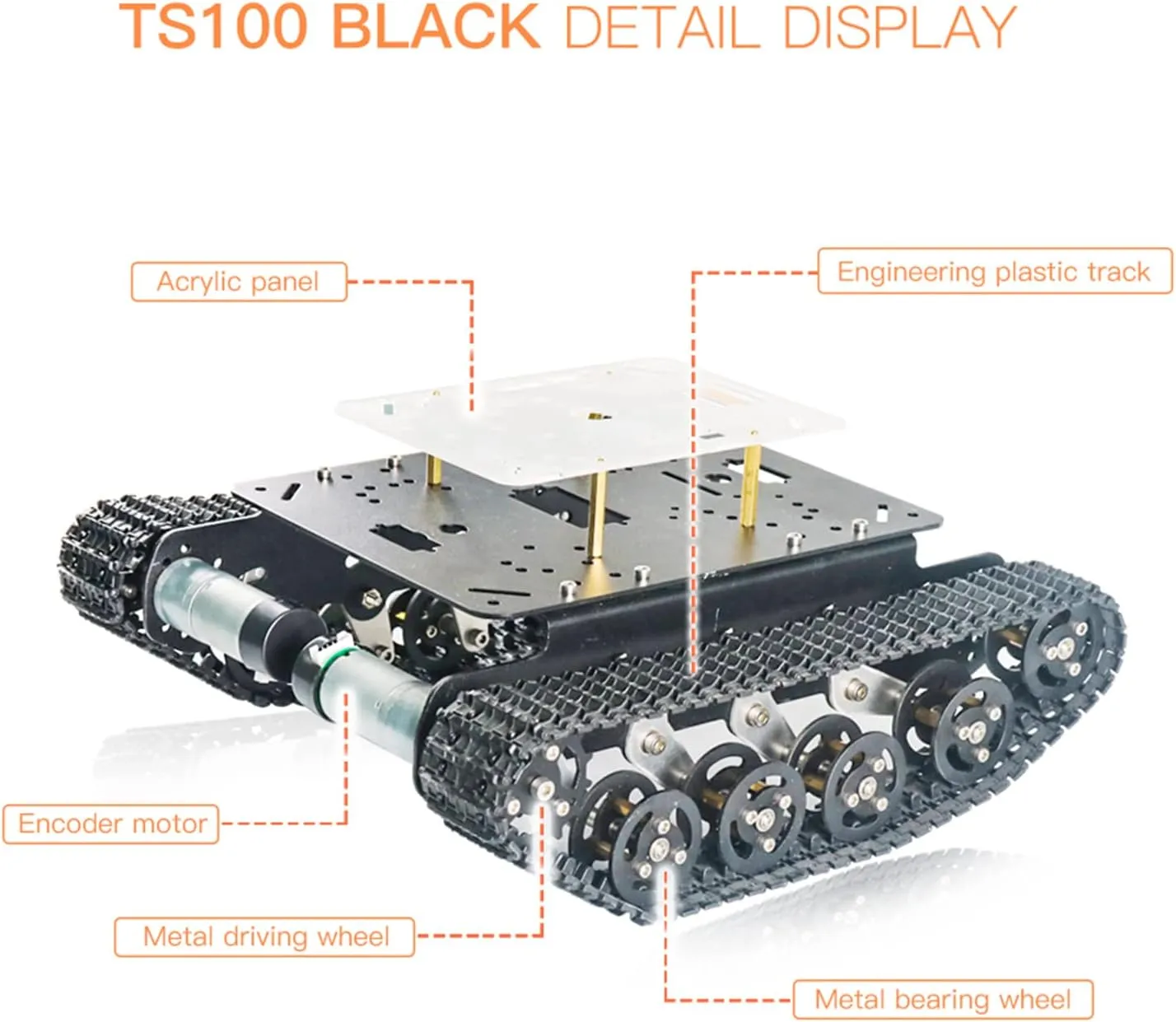

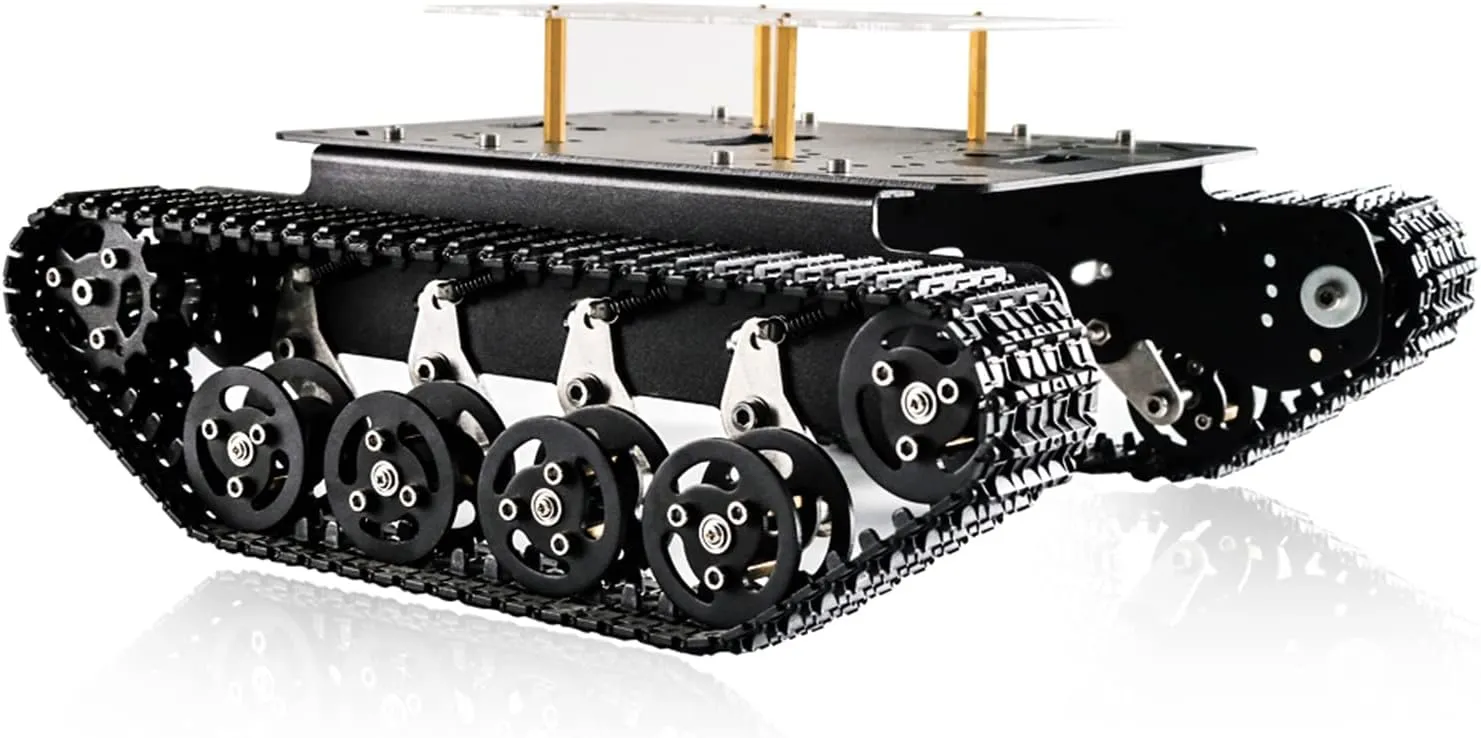

- 【Shock Absorption Tank Chassis】: This shock absorbing tank car chassis has 10 pcs bearing wheels, 2pcs driving wheels, in which, 8pcs bearing wheels with 8pcs springs and suspension supporting holders with damping suspension system function. More than 20pcs bearings, to make this tank car chassis runs smoothly with little friction.
- 【Professional Design】: The metal panel is specially designed for the general control board, like Arduino uno / NodeMCU / Raspberry pie, which makes you assemble the controller board perfectly. Also, reserve many other installation hole locations for servos, sensors, and other electronics board. Specially, this metal panel also can be assembled into the wheel car with 25/37 motor brackets.
- 【High Torque DC Motor】: Engine is very important for the car chassis. So, one pair high torque DC motor with encoder is equipped with this shock absorption robot tank car chassis. By using the encoder, you can get the speed, wheel rotation, and other feedback, which will enable you to do more research work.
- 【Lear More】: You can know the robot structure after you assemble the robot tank chassis kit, which includes DC encoder motor, frame, wheel, shock suspension system. After that, you can learn how to remote control the tank by the controller, e.g., Arduino, Raspberry pie, Microbit, together AI robot for automatic driving with many sensors.
- 【What You Get】: This tank car chassis have many accessories, like bearing, driving and bearing wheels, track, metal frame, screw kit, and wrench tools. Therefore, please be patient to assemble the robot chassis according to the manual attached to this link. If have any problem, please don’t hesitate to contact us. We will reply you within 24h.
Professional Shock Absorption Metal Robot Tank Car Chassis Kit with DC Encoder Motor for Arduino / Raspberry Pie
Introduction
Chassis suspension (suspension) system is the general name of all force transfer devices between the frame and the axle or wheel. The main function of suspension is to transfer all forces and moments between the wheel and the body, such as supporting force, braking force and driving force, and ease the impact load transmitted to the body from uneven road surface, and attenuate the vibration caused by it Ensure the comfort of passengers, reduce the dynamic load of cargo and vehicle itself.

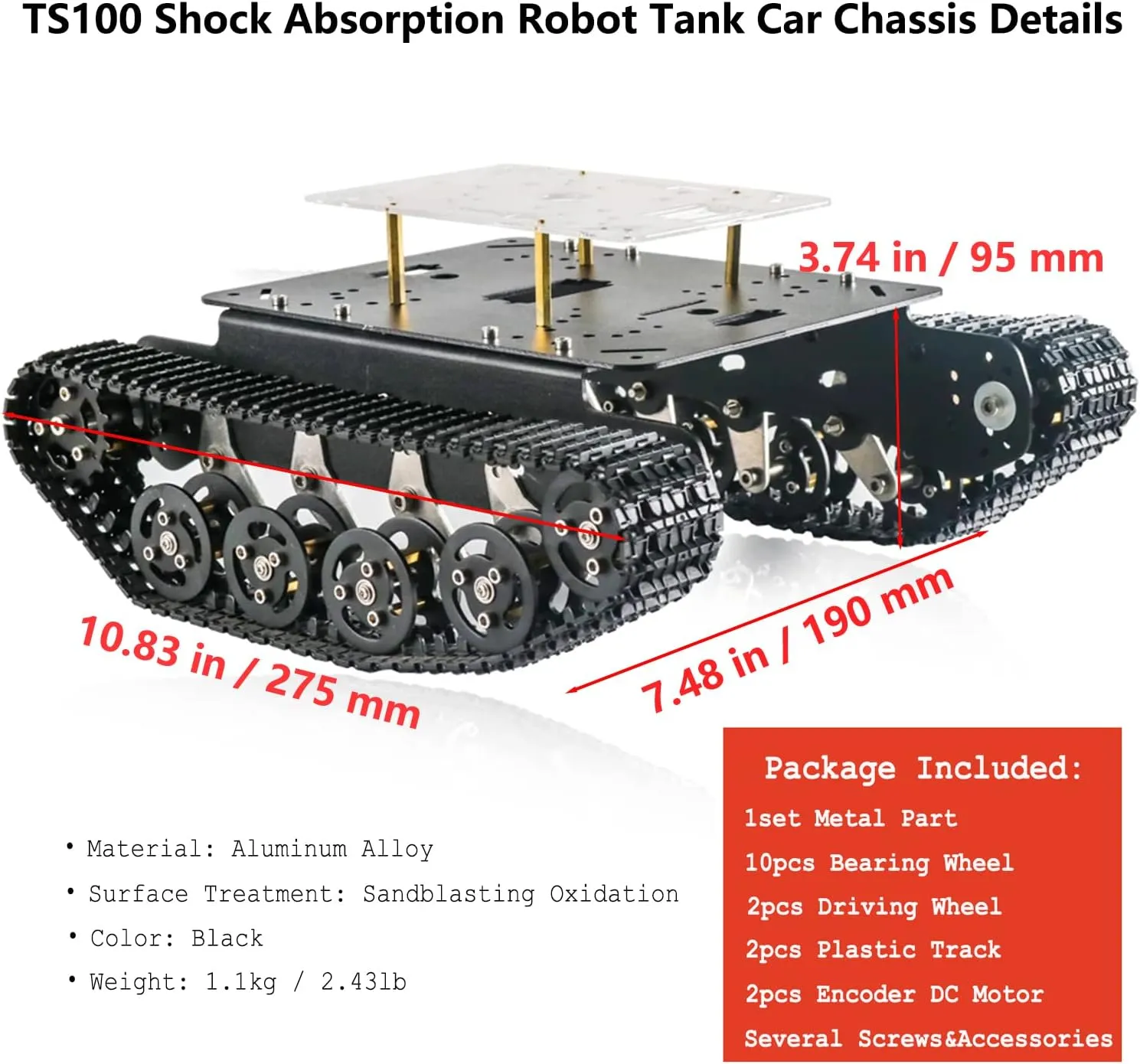

Tank Chassis Parameters
- Size: 275*190*95mm/ 10.83*7.48*3.74in (length*width*height)
- Net weight: about 1.1kg/ 2.43lb
- Working voltage: 9-12v
- Load weight: 3-5 kg
- Material: aluminum alloy
- Track: engineering plastic (4.1cm wide, freely removable)
- Drive wheel: metal
- Bearing wheel: metal
- Independent damping system

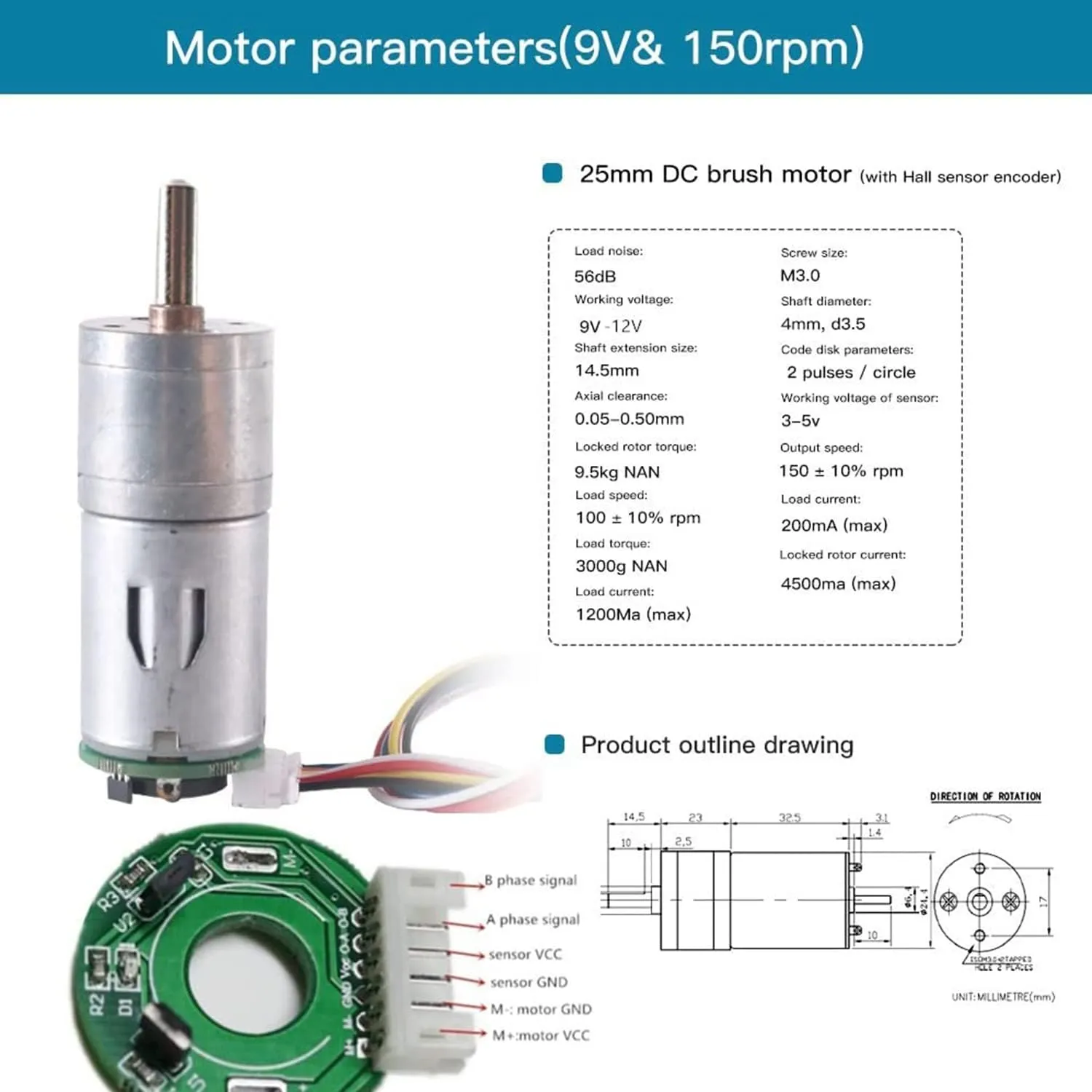

Motor Parameters
- Name: 25mm gear motor
- Output speed: 150±10%rpm
- No_load current: 200mA (Max)
- Stall current: 4500mA(max)
- Stall torque: 9.5kgNaN
- Rated speed: 100±10%rpm
- Rated torque: 3000gNaN
- Rated current: 1200mA (Max)
- Noise: 56dB
- Working voltage: 9-12V
- Outside Shaft Length: 14.5mm
- Shaft End Play: 0.05-0.50mm
- Screw Size:M3.0
- Dia. Of Shaft phi 4mm, D3.5
- Encoder: 6pulses/circle
- Working voltage for sensor: 3-5V
Shipping List
- Metal part: 1set
- Bearing wheel: 10pcs
- Driving wheel: 2pcs
- Plastic track: 2pcs
- Encoder DC motor: 2pcs
- Screws kit: 1set
- Others: several
