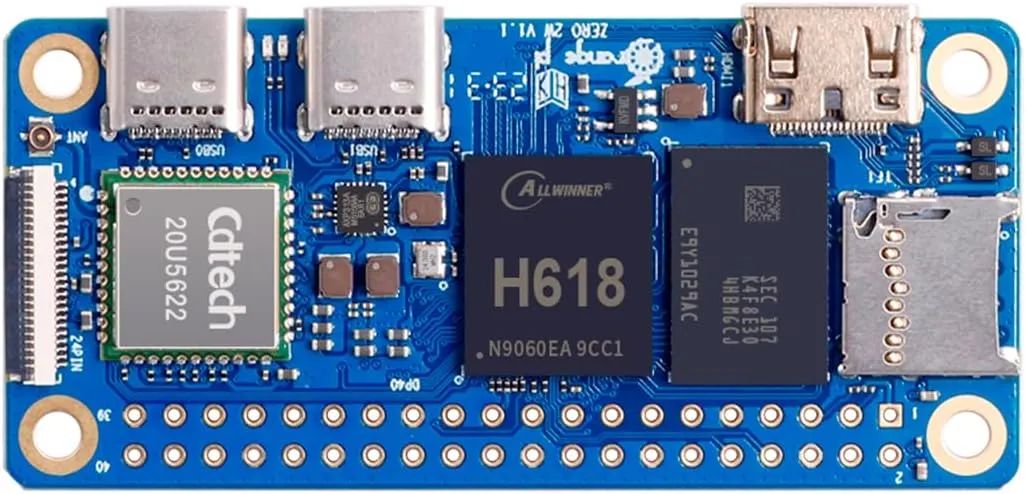

- Orange Pi Zero 2W is powered by Allwinner H618 high-performance quad-core Cortex-A53 processor with up to 1.5GHz, integrated Mali G31 MP2 graphics processor, supporting OpenGL ES 1.0/2.0/3.2, OpenCL 2.0, Vulkan 1.1. It has 1GB /1.5GB / 2GB /4GB LPDDR4 memory specification options, supports 16MB SPI Flash. Outperform the Raspberry Pi Zero 2W.
- Orange Pi Zero 2W mini pc can be extended with USB2.0, 100M Ethernet, IR receiver, audio output, TV-out, power button, etc. via 24Pin connector with adapter board. In addition, the 40Pin expansion port on the board further enriches the motherboard's functional interfaces and enhances the development potential.
- Orange Pi Zero 2W 4G adheres to the compact and exquisite design concept of the Zero series, with a PCB size of 30mm X 65mm X 1.2mm, and can be widely used in TV boxes, smart screen casting devices, smart home, smart gateway, IoT and other fields.
- Wi-Fi5 BT 5.0, with BLE support: 2.4G/5G dual-band Wi-Fi5 and Bluetooth 5.0 with BLE support, enjoy the wonderful network anytime, anywhere.
- Orange Pi Zero 2W 4GB supports Android 12 TV, Debian11, Debian12, Ubuntu22.04, Ubuntu20.04 ，Orange Pi OS（Arch）and other operating systems.
- Orange Pi Single Board Computers can builed a computer, a wireless server, Games, music and sounds, HD video, a speaker, Android, Scratch. Pretty much anything else, because Orange Pi is open source.
Hardware Specification Parameter
CPU: Allchi H618 high-performance quad-core Cortex-A53 processor 1.5GHz
GPU: Mali G31 MP2
Support OpenGL ES 1.0/2.0/3.2, OpenCL 2.0, Vulkan 1.1
Memory: LPDDR4:1GB/1.5GB/2GB/4GB (optional)
Storage: SPI Flash: 16MB
Wi-Fi Bluetooth: WiFi Bluetooth two-in-one module
Wi-fi 5.0 BT 5.0, BLE
The interface is 1x Mini HDMI TX 2.0, 4K@60FPS is supported
USB: Type-C USB2.0 x 2
SD card interface: 1x MicroSD card interface
Expansion interface: 24Pin expansion interface: USB2.0*2, 100M Ethernet interface, infrared receiving interface, audio output, video TV-OUT output, power button, user-defined button *2
40Pin: The 40Pin function extension interface supports the following interface types:
GPIO, UART, I2C, SPI, PWM
Power supply: Type-C 5V3A
Supported OS: Android 12 TV, Debian11, Debian12, Ubuntu22.04, Ubuntu20.04, Orange Pi OS (Arch)
PCB size: 30mm x 65mm x 1.2mm
Weight: 12.5g
