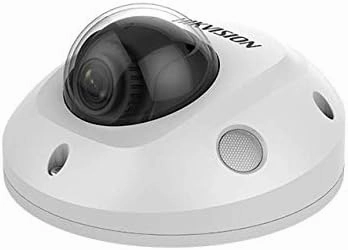

- 1/3" (4 MP) Progressive Scan CMOS ~ 2688 x 1520 Resolution @ 30 fps
- It supports H.265 video compression, which assures savings in bandwidth and storage ~ MicroSD Card Slot Supports 128 GB ~ Built-in microphone( The product has a built-in microphone that can pick up sound.If you need to view the video with sound. You need to download the "VSPlayer" player from the official website.)
- The camera has 2.8 mm fixed lens and offers an EXIR 2.0 range of up to 35 ft (10 m) ~ 120 dB True WDR ~ 12 VDC and PoE (802.3af)
- Smart features such as line crossing and intrustion detection are supported ~ IP66, IK08 Protection ~ Mounting Plate Included
Camera
Image Sensor:1/3" Progressive Scan CMOS
Signal System:PAL/NTSC
Min. Illumination:Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 lux @(F1.6, AGC ON), 0 lux with IR
Lens: 2.8 mm
Day& Night:IR Cut Filter
Wide Dynamic Range:120 dB
Digital noise reduction:3D DNR
Compression Standard
Video Compression:H.265 /H.265/H.264 /H.264/MJPEG
Video bit rate:256Kbps~16Mbps
Audio Compression:G.711/G.722.1/G.726/MP2L2/PCM
Triple Streams:Yes
Max. Image Resolution:2688 × 1520
Frame Rate:50Hz: 25fps (2688×1520, 2560×1440, 2304×1296, 1920×1080) 60Hz: 30fps (2688×1520, 2560×1440, 2304×1296, 1920×1080)
Image Enhancement:BLC/3D DNR/ROI/HLC
ROI:Support 1 fixed region for main stream and sub-stream separately
Network
Alarm Trigger:Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols:TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
System Compatibility: (Profile S, Profile G), ISAPI
Interface
Audio：2 Inputs: line in or mic in (built-in microphone), 1 output: line out, mono sound, terminal block
Communication Interface: 1 RJ45 10M / 100M Ethernet interface
Alarm:1 Input: Alarm in, 1 Output: Alarm out (max. 12 VDC, 30 mA), terminal block
On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button:Yes
Environment Noise Filtering:Support
Recognition:Face Detection
General
Operating Conditions:-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Power Supply:12 VDC ± 25%, PoE (802.3af Class3)
IR Range:Up to 10m
Dimensions:Φ110 mm × 56.4 mm (Φ4.3" × 2.2")
Weight:Camera: Approx. 400 g (0.9 lb.)
