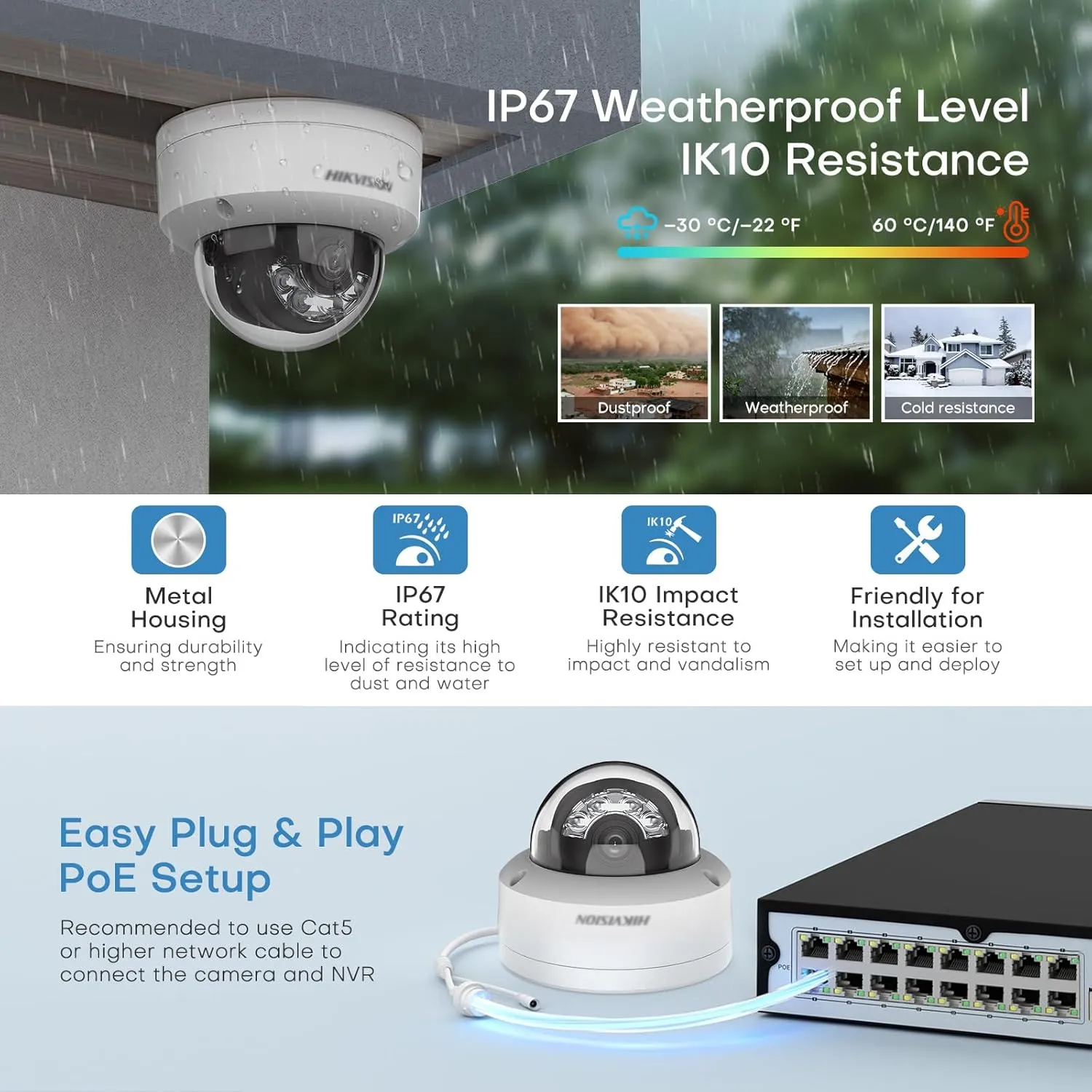

- S.h.i.p. from. U.S. Ware-house. The latest technology model: DS-2CD2143G2-LI, This 4MP Dome PoE IP Camera is International Original English Version, upgraded and enhanced model of DS-2CD2143G2-I, support upgrade firmware, support PoE (IEEE 802.3af, Class 3), plug and play with Hikv NVR. With an IP67 & IK10-rated design and metal housing, this camera can withstand inclement weather! We provide 2-year warranty and life-t-ime support for users. If you have any questions, please feel free to contact us.
- High quality imaging with 4 MP resolution: Stunning ultra-high quality 4MP (2688 × 1520) resolution utilizing the advanced F1.6 aperture lens, 1/2.9″ CMOS sensor and smart hybrid light, this 4MP PoE IP Camera excels in capturing rich and vibrant video, ensuring exceptional clarity and enhanced details. Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR. Clear imaging against strong backlight or darkness due to 120dB true WDR technology, 3D DNR Digital noise reduction.
- Smart Hybrid Light Technology：You can benefit from overall safety and full agility. When no targets are present, the camera exclusively utilizes invisible infrared IR light, achieving environmental friendliness and energy efficiency. Once an intruder is detected, the camera's lights will automatically turn on to warn potential perpetrators. You can also switch to infrared IR night vision and full color night vision modes to meet your different needs. 4 supplemental lighting modes.
- Intelligent Detection & VCA Functions: The latest deep learning algorithm classifies moving targets to focus on alarms caused by human and vehicles, reducing 98% of false alarms caused by other moving objects such as animals, falling leaves, etc. Built-in Video Content Analysis(VCA) algorithmfor more efficient monitoring as well as more effective perimeter protection, such as Line crossing detection, intrusion detection, face detection.
- Efficient H.265 compression technology, H.265 technology compresses your video without sacrificing any Ultra HD video quality, it reduces bandwidth by up to 75% over traditional H.264 compression, which not only transmits clearer, smoother video, but also saves up to 75% of disk storage space. Built-in microSD/SDHC/SDXC card slot, up to 512 GB.
Camera
Image Sensor: 1/2.9" Progressive Scan CMOS
Max. Resolution: 2688 × 1520
Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Lens
Lens Type: Fixed focal lens, 2.8mm
Focal Length & FOV: 2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 122°
Aperture: F1.6
DORI
DORI: D: 63 m, O: 25 m, R: 12 m, I: 6 m
Illuminator
Supplement Light Type: IR, White Light
Supplement Light Range: Up to 30 m
Smart Supplement Light: Yes
Video
Main Stream: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Video Compression: H.265/H.264/H.264 /H.265
Region Of Interest (ROI): 1 fixed region for main stream and sub-stream
Target Cropping: Yes
Image Parameters Switch: Yes
Wide Dynamic Range (WDR): 120 dB
SNR ≥ 52 dB
Image Enhancement: BLC,HLC,3D DNR
Privacy Mask: 8 programmable polygon privacy masks
Interface
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, up to 512 GB
Event
Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Deep Learning Function
Perimeter Protection: Line crossing, intrusion
General
Power: 12 VDC ± 25%, 0.6 A, max. 7.2 W,Ø5.5 mm coaxial power plug,reverse polarity protection; PoE: IEEE 802.3af, Class 3, max. 8.5 W
Material: Base: aluminum alloy, cover: aluminum alloy
Dimension: Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84")
Weight: Approx. 600 g (1.3 lb.)
