1. High precision: The electronic meter assumes a magnetic induction design, with a precise count, simple and convenient installation.
2. Battery operated: It can be operated with a 1.5 V-AA battery (not included in the scope of delivery), an external power supply is not required and the battery is easy.
3. Stable operation: Through the use of an excellent ABS Cover with vibration -proof design, it is ensured that the function stable and reliably.
4. High reliability: 6 -digit electronic magnetic induction counter, without mechanical wear, reliable operation and long shelf life.
5. Several uses: The counting area is and is often used in drilling machines, machine tools and assembly line projects.

Technical data:
Article type: digital counter
Material: ABS
Battery type: 1.5 V AA Battery (not included in the scope of delivery)
Counting Area:
Highest counting frequency: 20 Hz
Minimum count of counting pulse: 2 ms
Eliminate the minimum pulse width: 1s

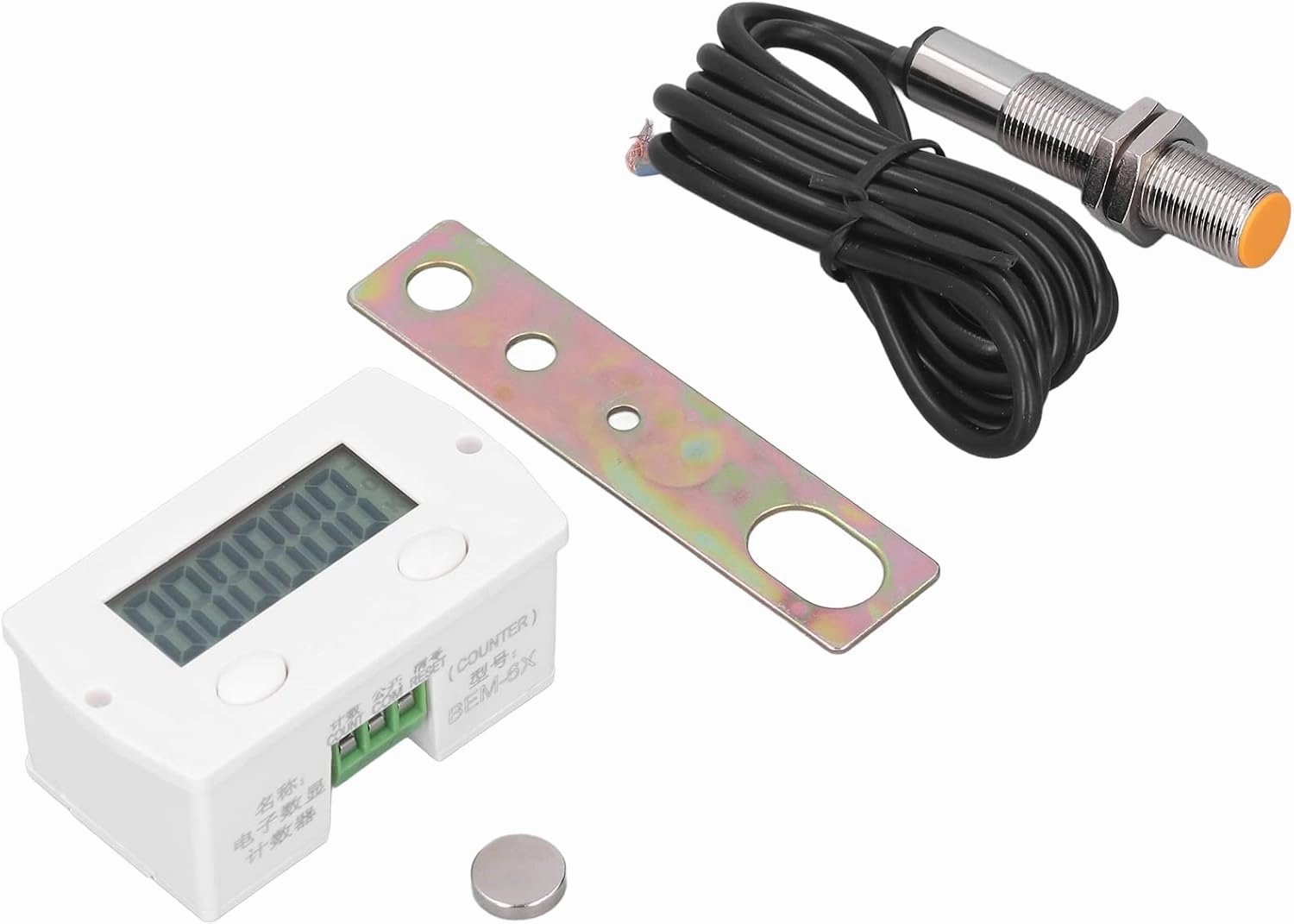

Packaging list:
1 x counter

1 x sensor cable
1 x magnet
1 x slate

A notice:
1. The signal line for the counting and extinction cycle should be as short as possible to avoid wiring with strong electricity or electric lines and avoid unnecessary disorders. If necessary, use armored lines and the armor layer is connected to the counting clamp .
2. For counting signal and restart signal, the signal can be entered without voltage, other electrical signals cannot be entered.
3. The recording distance depends on the magnetic size of the magnet. You can change the detection distance by replacing different magnets.
4. The operational temperature of the magnet should not exceed 70 ℃. If the temperature is too high, magnetism and induction fails.
5. If the screen is out of , replace the new battery. If you do not use the device for a long time, press the pause switch to turn off the additional counter and battery. You can also remove the battery to prevent the battery from falling, leaving and damaging the counter.
6. Use a normal AA battery and never connect an external power supply (an external power supply damages the counter). Meter electricity consumption is extremely low and does not have to press the pause switch every day to turn off the counter to save electricity.
7. If the counter is abnormal, it can be restarted. Method: Save the battery, install the battery in the opposite address, then remove the battery and then install the battery in the standard address.
