- FAST AND ACCURATE: This electronic speed governor uses closed loop control technology to quickly and accurately adjust the engine speed in response to load changes.
- ENGINE CONTROL: When connected to compatible EFC series electric actuators and magnetic speed sensor signals, this governor delivers control over the engine, ensuring optimal performance.
- SAFE : This generator speed controller features reverse battery voltage protection and prevents short circuit faults caused, providing safety in the event of signal loss from the speed sensor or power supply.
- EASY INSTALLATION: Easy to install, able to pre adjust, including idle speed and adjustment, this engine speed controller is suitable for multiple machine inputs or dedicated machinery.
- EXCELLENT COMPONENTS: Equipped with premium electronic components, this speed governor offers outstanding stability and exceptional performance.

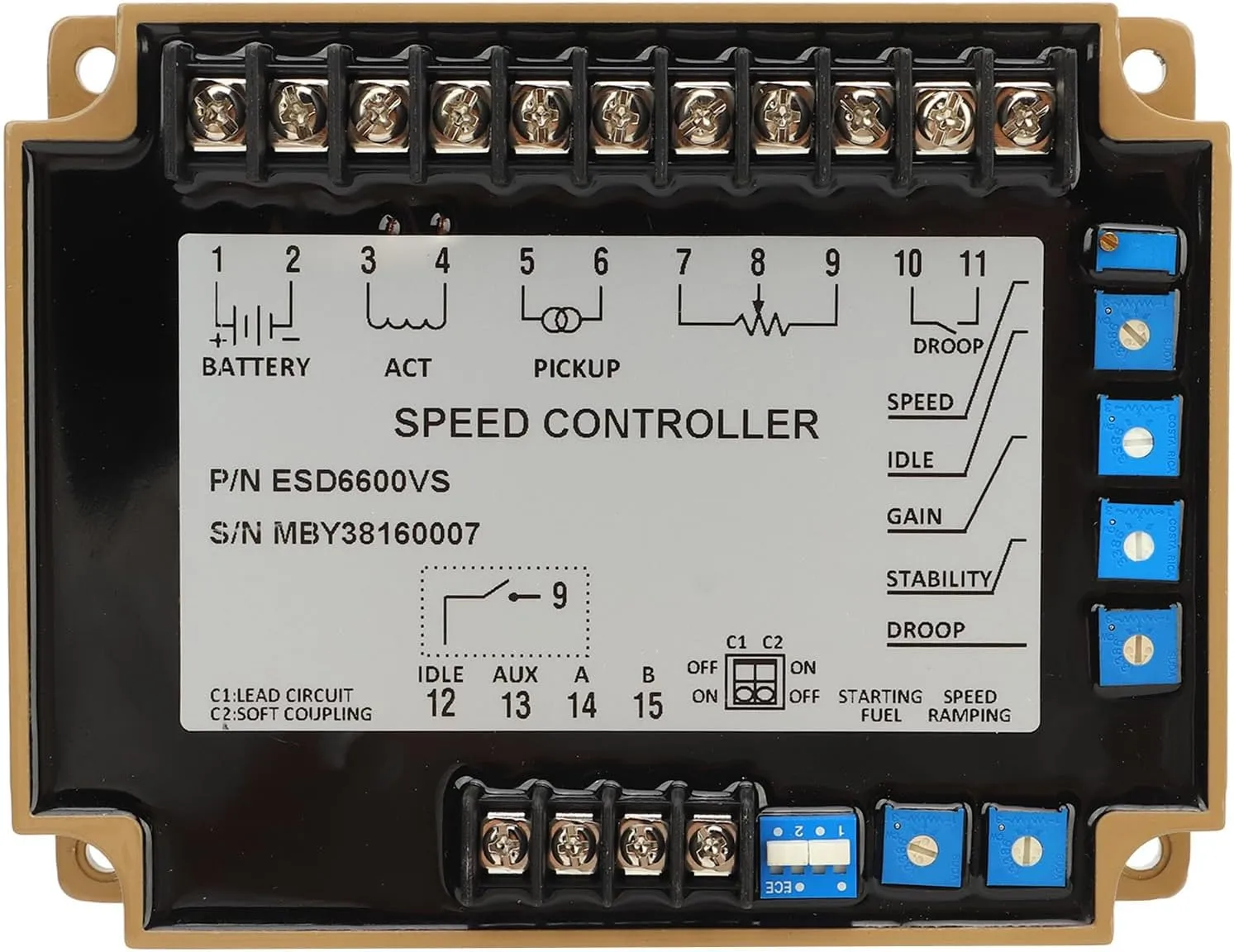

Item Type: Electronic Speed Governor
Material: ABS
DC Power Supply: 12-24 VDC battery system transient and reverse voltage protection
Synchronous : ±0.25% or better
Speed Range Governor: 1-7.5KHz continuous
Speed Drift With Temperature Change: Maximum ±1%
Idle Speed Clockwise Adjustment: 60% of the set speed
Idle Speed Counterclockwise Adjustment: Less than 1200Hz
Descent Range: 1-5% adjustment
Maximum Droop Adjustment (K-L Jumper): 400Hz 75Hz change every 1.0A
Speed Down Adjustment Minimum Value (K-L Jumper): 15Hz 75Hz change every 1.0A
Speed Fine Adjustment Range: ±200Hz
Remote Transmission Range: 500-7.5KHz
Package List：
1 x Electronic Speed Governor
