- 4-channels Step-down Buck DC-DC Converter power module
- 3.3V output: Input 4.5-30V, Output 3.3V (±3%)
- 5V output : Input 6.5-30V, Output 5V (±3%)
- 12V output : Input 13.5-30V, Output 12V (±3%)
- AJD output : Input 4.5-30V, Adjustable Output 2-28V
Product Name : 3A 4Ch DIN Rail Case Multiple Step-Down Buck Power Supply Module 3.3V 5V 12V Adjustable Output for PLC RS485 Relay Solar Panel
Packing list:

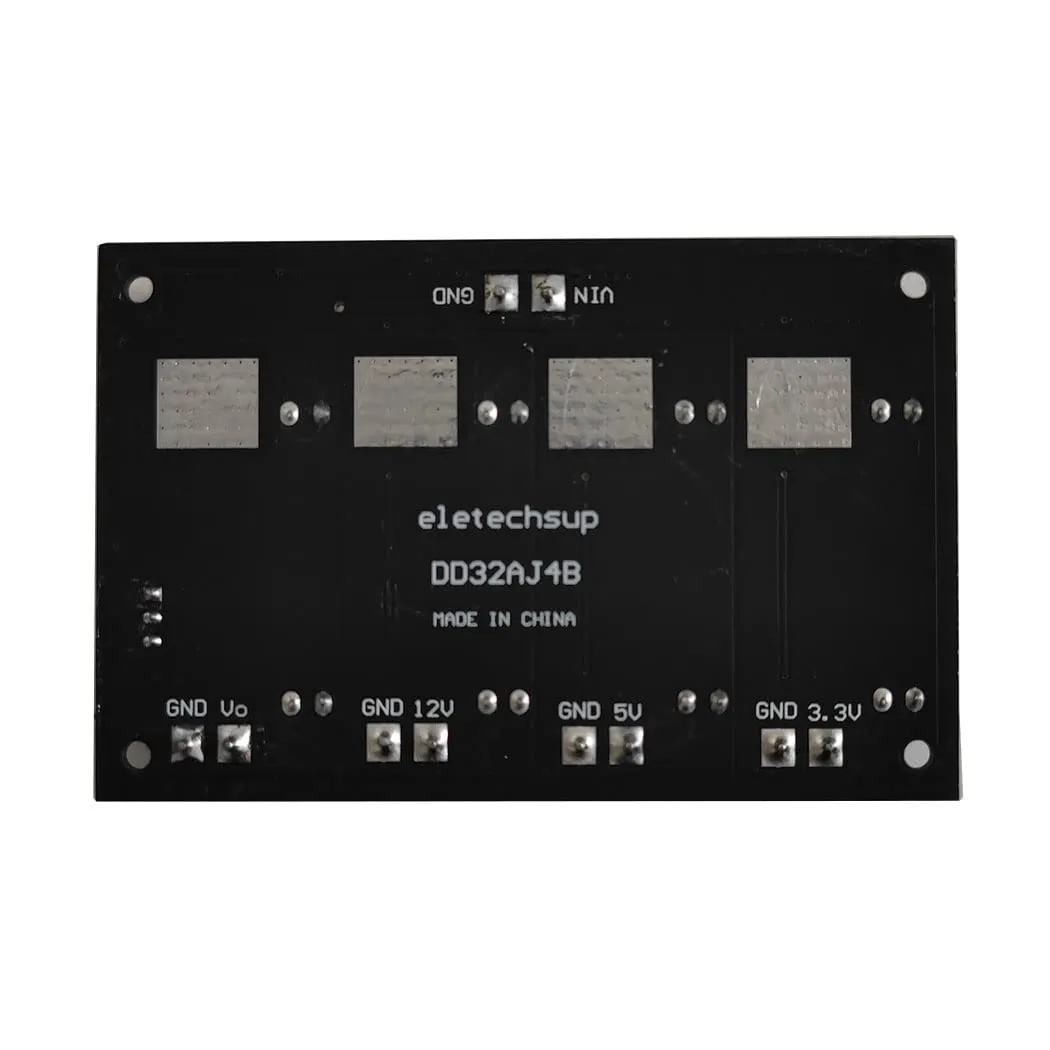

DD32AJ4B 3A 4CH with din rail mount Case DC DC Step-Down Buck Converter Module
Description:

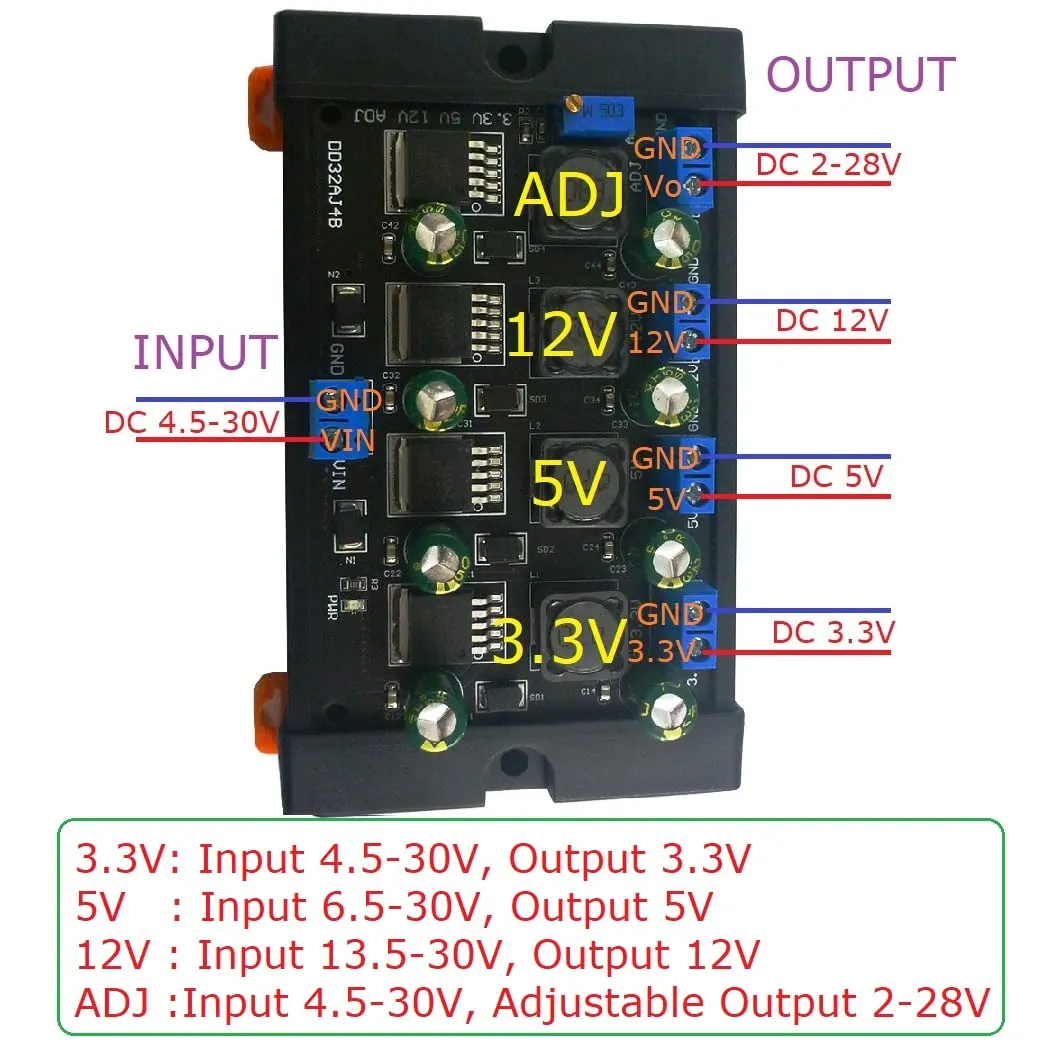

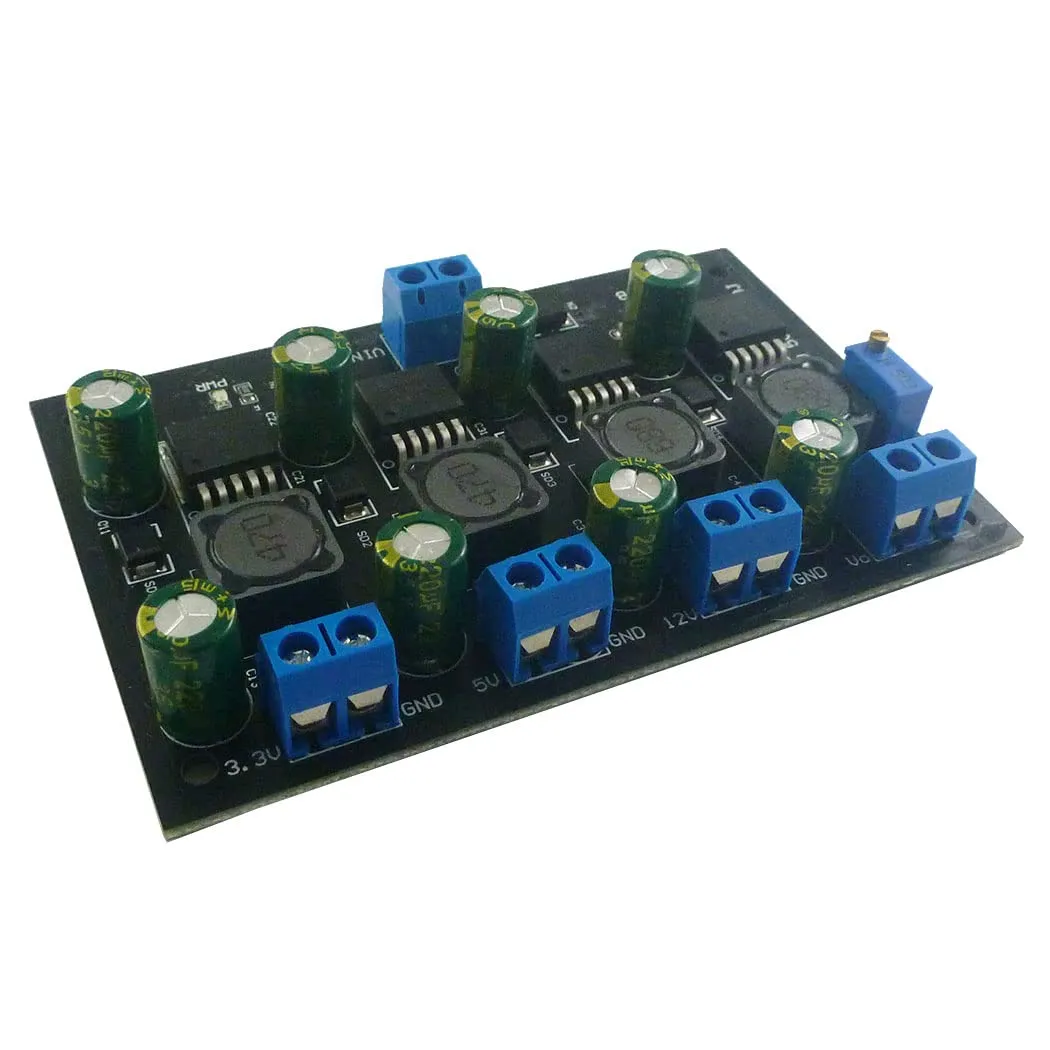

4-channels Step-down Buck DC-DC Converter power module
3.3V output: Input 4.5-30V, Output 3.3V (±3%)
5V output : Input 6.5-30V, Output 5V (±3%)
12V output : Input 13.5-30V, Output 12V (±3%)
AJD output : Input 4.5-30V, Adjustable Output 2-28V
Maximum output current per channel : 3A;
Overall maximum load power: 50 watts
Master chip : XL2596(compatible LM2596)
Working frequency 150KHz.
Input reverse connection protection
Built in thermal shutdown function,Built in current limit function,Built in second current limit function
Operating Temperature :–40°C to 85°C
Storage Temperature : –65°C to 150°C

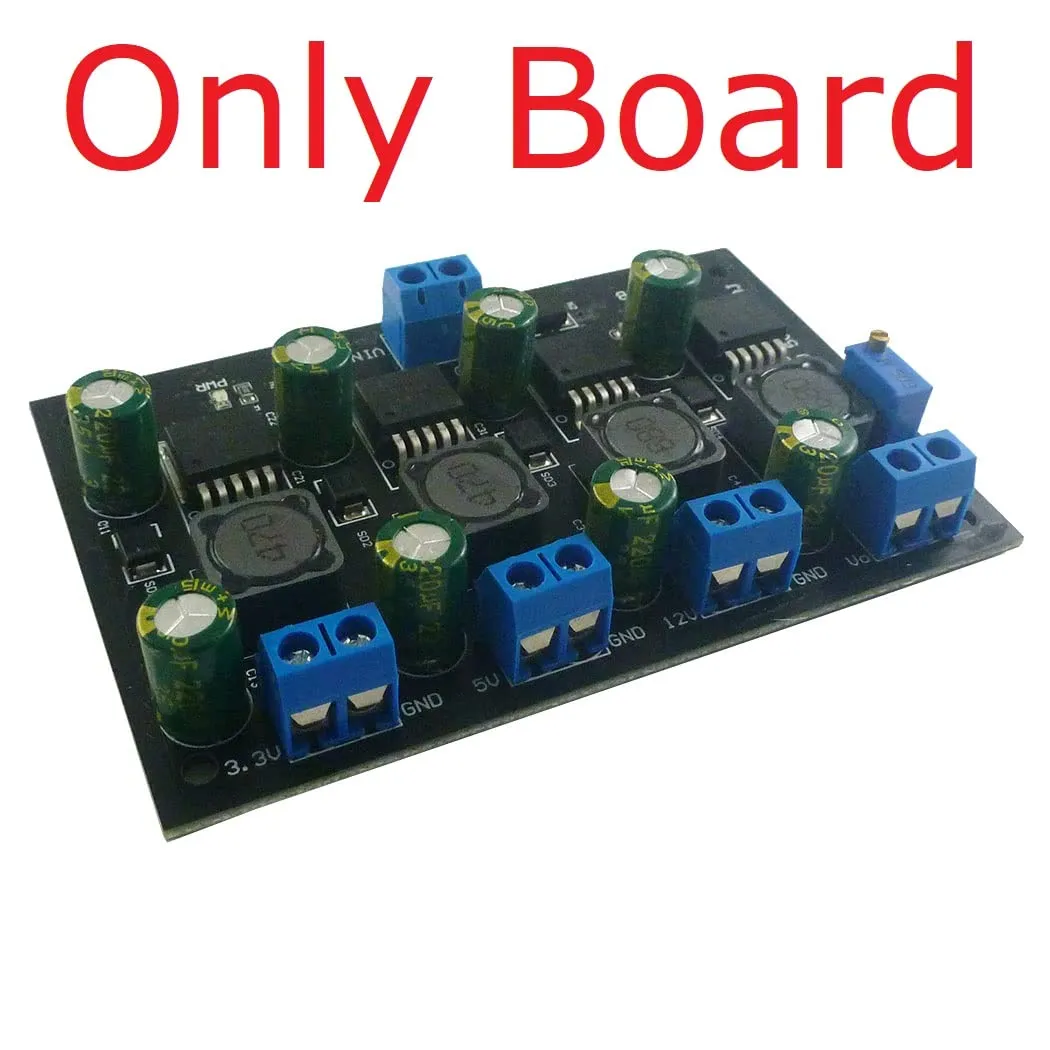

Size : 92 x 60 x 15mm(only Board),92 x 60 x 15mm(with Case)
Weight : 58g(only Board),117g(with Case)
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
Applications:
MCU ARM STM32 CPU FPGA/CPLD UNO MEGA3560 Raspberry Pi
Smart home / Home automation
Switch Network equipment
LED Motor Driver
- Item Weight : 1.76 ounces
- Date First Available : August 14, 2018
- Manufacturer : eletechsup
- Country of Origin : China
