Description

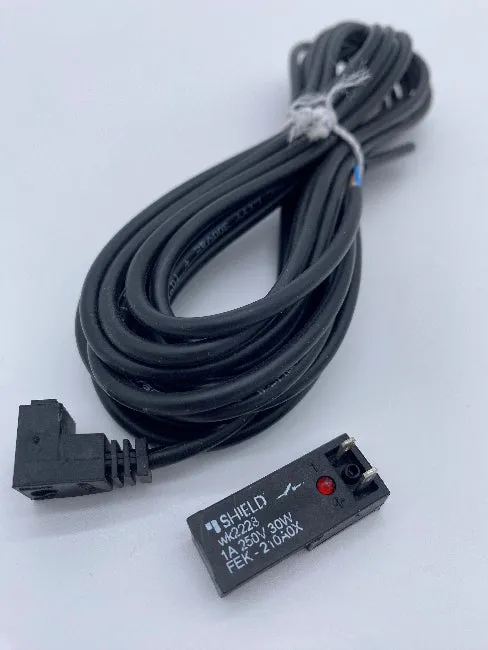

The 00B2002261B (Magnetic Proximity Sensor) 24020062 is a magnetic proximity sensor designed for precise position detection, often used in woodworking CNC machines. This sensor is integrated with a pneumatic cylinder or similar systems to provide accurate feedback for automation processes.

Key Specifications:

• Model: 24020062
• Part Number: 00B2002261B
• Type: Magnetic Proximity Sensor
• Technology: Non-contact sensing technology using a magnetic field to detect the position of a piston or other moving parts
• Sensor Type: Typically reed-switch or Hall-effect sensors
• Output Type: Digital output (e.g., NPN or PNP) for use with CNC control systems
• Mounting Style: Usually designed for T-slot or direct mounting to the pneumatic cylinder or machine frame
• Operating Voltage: Commonly 10-30V DC for industrial applications
• Operating Temperature Range: Typically -25°C to 70°C
• Protection Rating: Often IP67 for protection against dust, water, and harsh industrial environments

Applications in CNC Machines:

✅ Used for position detection of pneumatic actuators and cylinders in CNC machines
✅ Ideal for detecting the position of moving parts, such as clamping systems, tool changers, or spindle positioning
✅ Provides critical feedback to CNC control systems to ensure precise automation and coordination of tasks
✅ Ensures accurate and reliable operation in environments where dust, moisture, and vibrations are common, such as woodworking shops

Installation and Maintenance Tips:

• Proper alignment: Ensure the sensor is correctly aligned with the moving part (e.g., the cylinder rod) to accurately detect position.
• Avoid interference: Keep the sensor clear from metallic debris, dust, and other objects that may interfere with the magnetic field.
• Regular inspection: Check for any dust buildup or mechanical wear that could affect sensor performance.
• Wiring: Ensure the sensor's wiring connections are properly secured and protected to avoid signal loss or damage.
